Loadcell Ranges

Compression, tension and single point loadcells available in various materials, sizes and mounting styles.

Contact Us
The alloy steel series is a perfect choice in a variety of industries including the steel industry, chemical processing and manufacture, mining, paper / pulp, forestry, food industry, cement and aggregate.

Alloy Steel Range

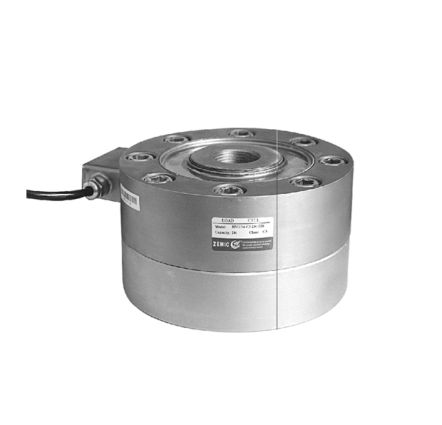

Loadcell HM2D4

Model - HM2D4

Download Spec Sheet

Type - Compression / Tension
Rating -IP68
Capacity - 500kg ~ 50t
Approvals - -
Accuracy - C3
Wiring - Shielded 6 wire cable Ø 5.6mm 5m cable length

Get Quote
Loadcell H3

Model - H3

Download Spec Sheet

Type - S beam
Rating - IP67
Capacity - 25kg ~ 30t
Approvals - OIML, NRCS EX Optional
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5mm 6m cable length

Get Quote

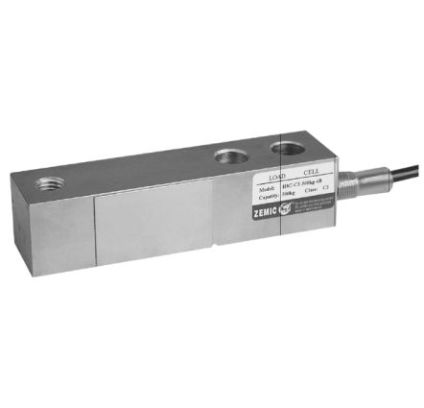

Loadcell H8C

Model - H8C

Download Spec Sheet

Type - Single shear beam
Rating - IP67
Capacity - 0.5t ~ 10t 1Klb ~ 20Klb
Approvals - OIML,  NRCS
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5mm 4m (0.5t ~ 2ton) 6m (2.5t ~ 10t)

Get Quote

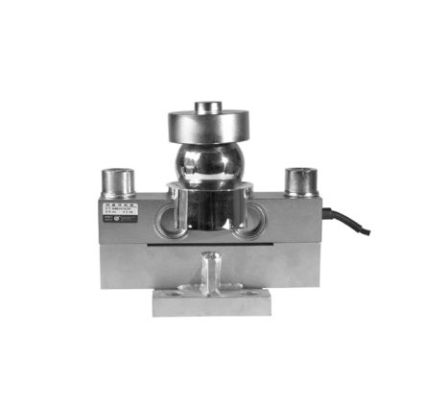

Loadcell HM9B

Model - HM9B

Download Spec Sheet

Type - Dual shear beam
Rating - IP68 Nickel plated
Capacity - 10t ~ 50t
Approvals - OIML, NRCS, EX Optional
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5.5mm 20m cable length

Get Quote
Loadcell Solar 365i

Model-Solar 365i

Download Spec Sheet

Type - Dual shear beam Rating - IP68 Nickel Plated Capacity - 25t Approvals - OIML, NRCS Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5.5mm 20m cable length

Get Quote
Loadcell HM8C

Model - HM8C

Download Spec Sheet

Type - Single shear beam Rating - IP68 Capacity - 0.5ton ~ 5ton Approvals - EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 4m (0.5t ~ 2t) 6m (2.5t ~ 10t)

Get Quote

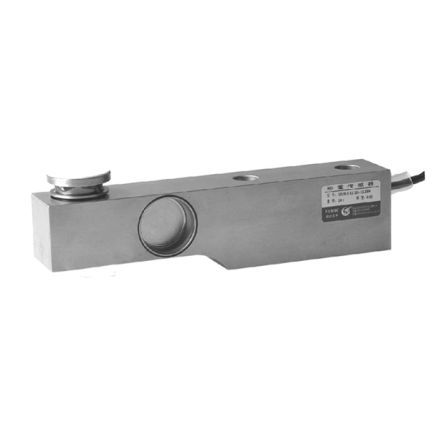

Loadcell HM8

Model - HM8

Download Spec Sheet

Type - Single shear beam Rating - Alloy Steel Capacity - 1t ~ 30t
Approvals - EX Optional Accuracy - C3 Wiring - Shielded 6 wire cable Ø 6.2mm 6m cable length

Get Quote
Loadcell H6E

Model - H6E

Download Spec Sheet

Type - Single Point with parallel beam Rating - IP66 Nickel plated Capacity - 20kg ~ 300kg Approvals - EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 2m cable length

Get Quote

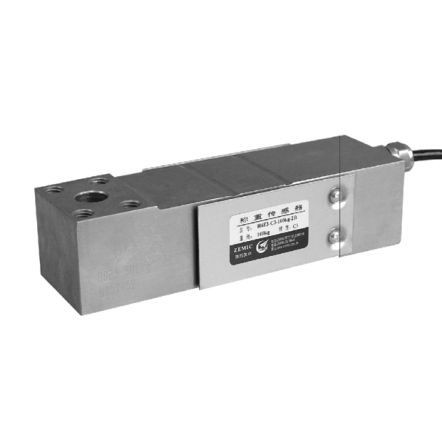

Loadcell H6E3

Model - H6E3

Download Spec Sheet

Type - Single Point with parallel beam Rating - IP66 Capacity - 20kg ~ 300kg Approvals - EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 3m cable length

Get Quote

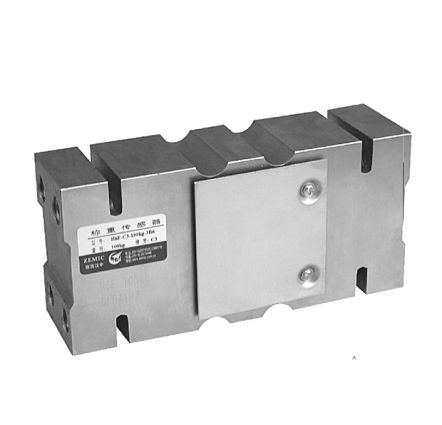

Loadcell H6F

Model - H6F

Download Spec Sheet

Type - Single Point with parallel beam Rating - IP66 Capacity - 50kg ~ 2000kg Approvals - EX Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 3m cable length

Get Quote

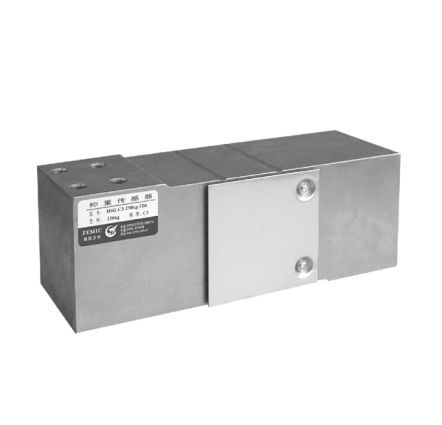

Loadcell H6G

Model - H6G

Download Spec Sheet

Type - Single Point with parallel beam Rating - IP66 Capacity - 50kg ~635kg Approvals - EX Optional Accuracy - C3 Wiring - Shielded 6 wire cable Ø 6.2mm 3m cable length

Get Quote

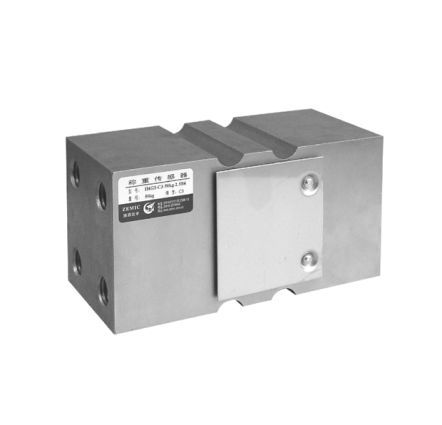

Loadcell H6G5

Model - H6G5

Download Spec Sheet

Type - Single Point with parallel beam Rating - IP66 Capacity - 50kg ~ 2000kg Approvals - Optional Accuracy - C3 Wiring - Shielded 4 wire cable Ø 6.2mm 3m cable length

Get Quote

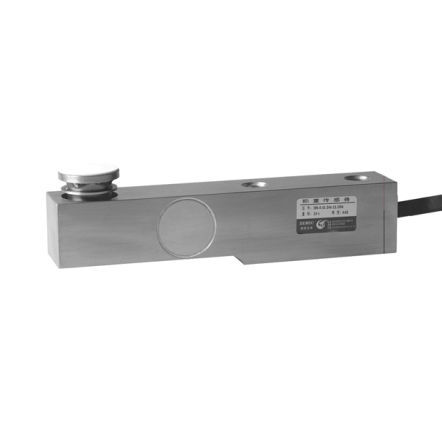

Loadcell H8

Model - H8

Download Spec Sheet

Type - Single shear beam Rating - IP67 Capacity - 0.5t ~ 50t Approvals -
OIML, EX Optional Accuracy - C3 Wiring - Shielded 6 wire cable Ø 6.2mm 4m (0.5t ~ 3ton) 7m (5t) 12m (10~50t)

Get Quote
Loadcell H2F

Model - H2F

Download Spec Sheet

Type - Spoke type Rating - IP67 Capacity - 1t ~ 50t Approvals - - Accuracy - C3 Wiring - Shielded 6 wire cable Ø 6mm 3m cable length
(1t ~3t) 4m (5t ~ 10t) 15m (15t ~ 50t)

Get Quote

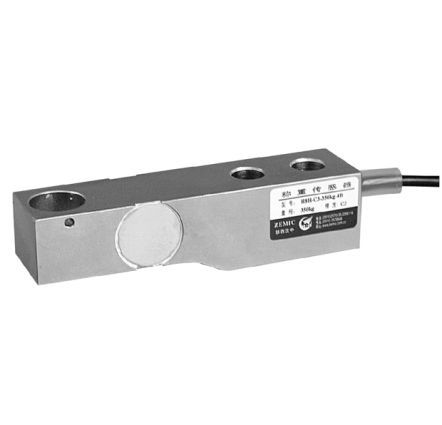

Loadcell H8H

Model - H8H

Download Spec Sheet

Type - Single shear beam Rating - IP67 Capacity - 0.25t ~ 5t 0.5Klb ~ 10Klb Approvals - - Accuracy - C3 Wiring - Shielded 4 wire cable Ø 6.2mm 6m (250kg ~1t) 3m (2t ~ 5t)

Get Quote
Loadcell H8Q

Model - H8Q

Download Spec Sheet

Type - Single shear beam Rating - IP67 Capacity - 200kg ~ 2ton Approvals - - Accuracy - C3 Wiring - Shielded 4 wire cable Ø 5mm 3m cable length

Get Quote

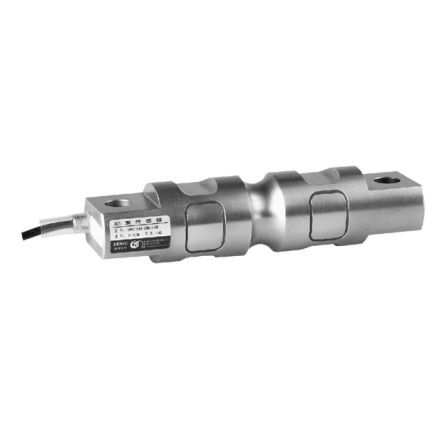

Loadcell H9C

Model - H9C

Download Spec Sheet

Type - Dual shear beam
Rating - IP67
Capacity - 5Klb ~ 250Klb
Approvals - OIML, EX Optional
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5mm (5K ~ 20K) Ø 8mm (30K ~ 250K) 9m cable length

Get Quote

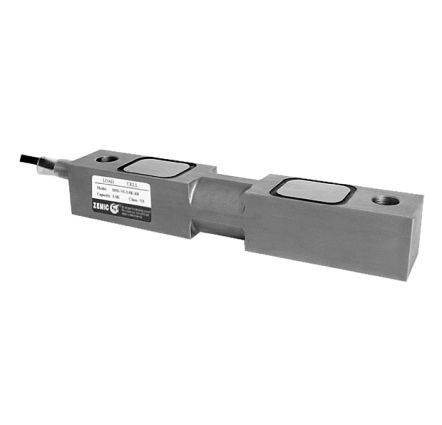

Loadcell H9D

Model - H9D

Download Spec Sheet

Type - Dual shear beam
Rating - IP67
Capacity - 1Klb ~ 75Klb
Approvals - OIML, EX Optional
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5mm 6m cable length

Get Quote

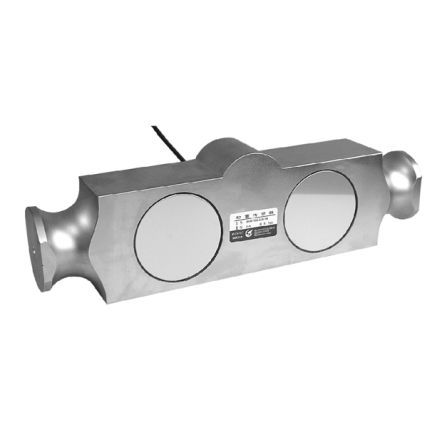

Loadcell H9H

Model - H9H

Download Spec Sheet

Type - Dual shear beam
Rating -IP67
Capacity - 50Klb ~ 100Klb
Approvals - -
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5mm 9m cable length

Get Quote
Loadcell H9N

Model - H9N

Download Spec Sheet

Type - Dual shear beam
Rating - IP67
Capacity - 25Klb ~ 200Klb
Approvals - -
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5mm 9m cable length

Get Quote

Model - H2A

Download Spec Sheet

Type - Spoke type
Rating -IP67
Capacity - 1MN ~ 5MN
Approvals - EX Optional
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5mm 6m cable length

Get Quote

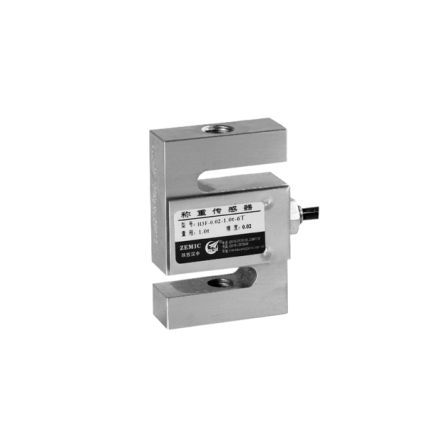

Loadcell H3F

Model - H3F

Download Spec Sheet

Type - S beam
Rating - Alloy Steel, IP68
Capacity - 0.1t ~ 5t 250lb ~ 20 Klb
Approvals - EX Optional
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5mm 6m cable length

Get Quote
Loadcell HM9A

Model - HM9A

Download Spec Sheet

Type - Dual shear beam
Rating - IP68
Capacity - 10t ~ 50t
Approvals - -
Accuracy - C3
Wiring - Shielded 6 wire cable Ø 6.2mm 6m cable length

Get Quote
Loadcell H3G

Model - H3G

Download Spec Sheet

Type - S beam
Rating - IP67
Capacity - 50kg ~ 10t 50lb ~ 20Klb
Approvals - EX Optional
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5mm 6m cable length

Get Quote
Loadcell HM9C

Model - HM9C

Download Spec Sheet

Type - Dual shear beam
Rating - IP68
Capacity - 5Klb ~ 250Klb
Approvals - OIML, EX Optional
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5mm (5K ~ 20K) Ø 8mm (30K ~ 250K) 9.3m cable length

Get Quote
Loadcell HM9E

Model - HM9E

Download Spec Sheet

Type - Dual shear beam
Rating - IP68
Capacity - 5Klb ~ 250Klb 20t ~ 100t
Approvals - EX Optional
Accuracy - C3
Wiring - Shielded 4 wire cable Ø 5mm (5K ~ 20K) Ø 8mm (30K ~ 250K) 9.3m cable length

Get Quote
Loadcell HM11

Model - HM11

Download Spec Sheet

Type - Bellowed
Rating - IP68
Capacity -5kg ~500kg
Approvals - EX Optional
Accuracy - C3
Wiring - Shielded 4 or 6 wire cable Ø 5mm (5K ~ 20K) 3m length (4 wire) 6m length (6 wire)

Get Quote

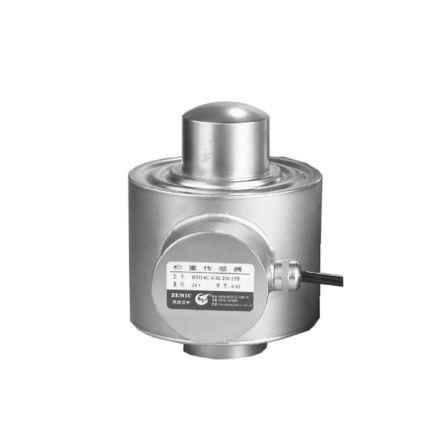

Loadcell HM14C

Model - HM14C

Download Spec Sheet

Type - Column structure
Rating - IP68
Capacity - 10t ~ 50t
Approvals - EX Optional
Accuracy - C3
Wiring - Shielded 6 wire cable Ø 6.3mm 13m cable length

Get Quote
Loadcell HM14H

Model - HM14H

Download Spec Sheet

Type - Column structure
Rating - IP68
Capacity - 10t ~ 60t
Approvals - -
Accuracy - C3
Wiring - Shielded 6 wire cable Ø 5mm 12m cable length

Get Quote

This symbolizes the level of Ingress Protection for electronic materials, in accordance with the IEC 529, DIN 40050, BS 5490 and NF C 20-010 standards

0 = Non protected
1 = Protected against solid foreign objects of 50mm diameter and greater
2 = Protected against foreign objects of 12.5mm diameter and greater
3 = Protected against solid foreign objects of 2.5mm diameter and greater
4 = Protected against solid foreign objects of 1.0 mm diameter and greater
5 = Dust protected
6 = Dust tight

0 = Not protected
1 = Protected against vertically falling water drops
2 = Protected against falling water drops as the enclosure is tilted 15 degrees
3 = Protected against spraying water
4 = Protected against splashing water
5 = Protected against water jetting
6 = Protected against powerful water jetting
7 = Protected against temporary immersion
8 = Protected against continuous immersion

Material Reference

Loadcell or accessory models starting with the following letters refer to the material they are made from:
H = Alloy Steel / L = Aluminium / B = Stainless Steel
